A typical setup for overhead power lines

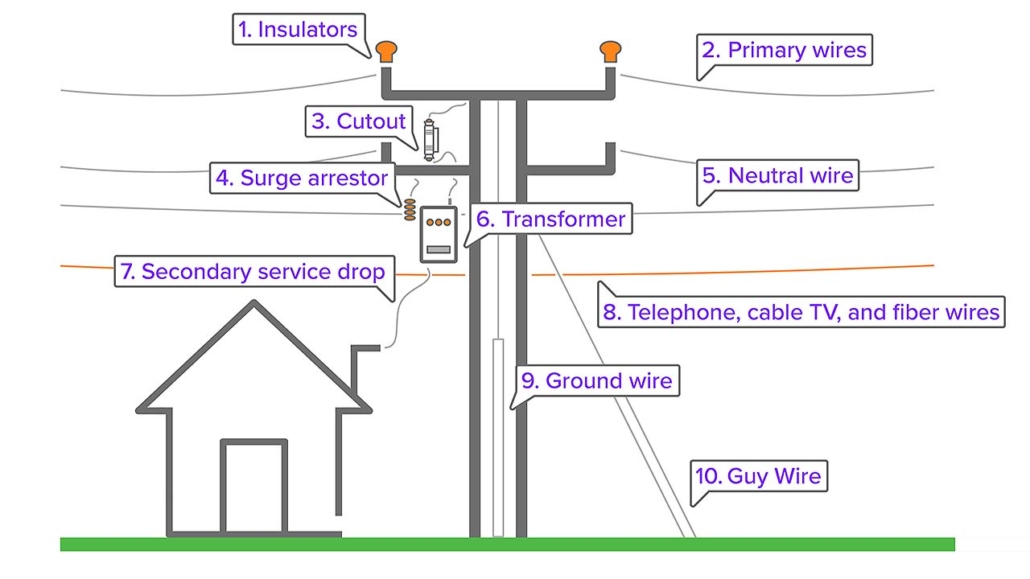

There are many different arrangements of equipment on utility poles, depending on the service being provided and location. The diagram above represents a common arrangement of equipment within Entergy's distribution networks. Typically, anything located above the telephone cables can be assumed to be Entergy's equipment. Learn more about what equipment is yours and what equipment is ours.

  1. Insulators
    Prevent energized wires from contacting each other or the pole.
  2. Primary wires
    Carry between 2,400 to 34,500 volts of electricity from a substation. That's up to 290 times higher than the voltage in your home's electrical outlets!
  3. Cutout
    Acts like a fuse and opens when there is a problem with the line or a section of it.
  4. Surge arrestor
    Offers lightning protection.
  5. Neutral wire
    Balances the electricity on the system. It’s tied to the ground and runs back to the substation.
  6. Transformers
    Converts higher voltage electricity carried by primary wires and lower the voltage for use by customers.
  7. Secondary service drop
    Carries 120/240 volts of electricity to customers' homes. It contains two "hot" wires from the transformer and a bare "neutral" wire that's connected to the ground wire on the pole.
  8. Telephone, cable TV, and fiber wires
    These are typically the lowest wires on the pole and not maintained by Entergy.
  9. Ground wire
    Completes the circuit inside the transformer by connecting to the neutral wire. It also directs electricity from lightning into the earth.
  10. Guy wire
    Used to support the poles. It usually has insulators and a sheath of yellow plastic reflector for safety.
